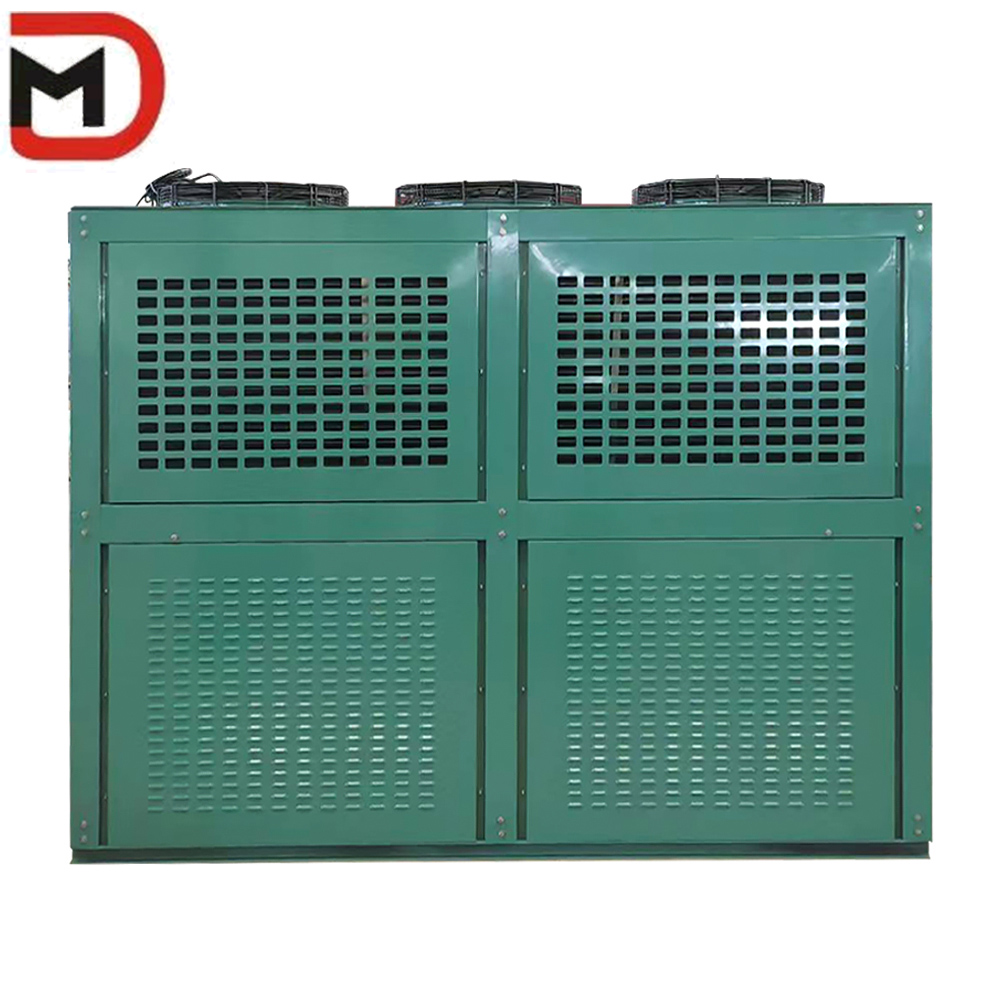

Product Description:
The design incorporates an integrated box structure that not only looks sleek and modern, but also offers a compact and efficient solution for all your needs.
The structure itself is smartly designed and the interior components are arranged in an organized and uniform manner, allowing for better control and management of the system.
In addition, the condenser's heat exchange capacity is maximized thanks to the well-designed structure of the system, ensuring that you get the best performance possible.
Features:
Our condenser is designed with a focus on achieving reasonable performance and high energy efficiency. We understand the importance of providing a product that operates effectively while still conserving energy, and we have taken steps to ensure our unit meets these requirements.
To further enhance the unit's appeal, we have adopted an external rotor motor that not only has a sleek design, but also runs quietly, producing minimal noise. This feature is particularly important for those who require a machine that doesn't cause any disturbances during operation. Additionally, we have made sure that the unit is designed for easy maintenance, with a panel that can be quickly and easily disassembled—making maintenance a breeze.
We believe in cultivating strong and positive relationships with our suppliers to guarantee the quality of our raw materials, and ensure that we are providing our customers with quality products that are built to last. This is an essential aspect of our business that allows us to consistently deliver satisfying results to our clients.
Our unit is highly versatile and can even be equipped with a crystal-like compressor. It can work with multiple systems, including R134a, R404A, R507A, and R22, making it ideal for a range of applications and settings.
Technical Parameters:
Heat Exchange Capacity and Pipe Sizes for Different Models

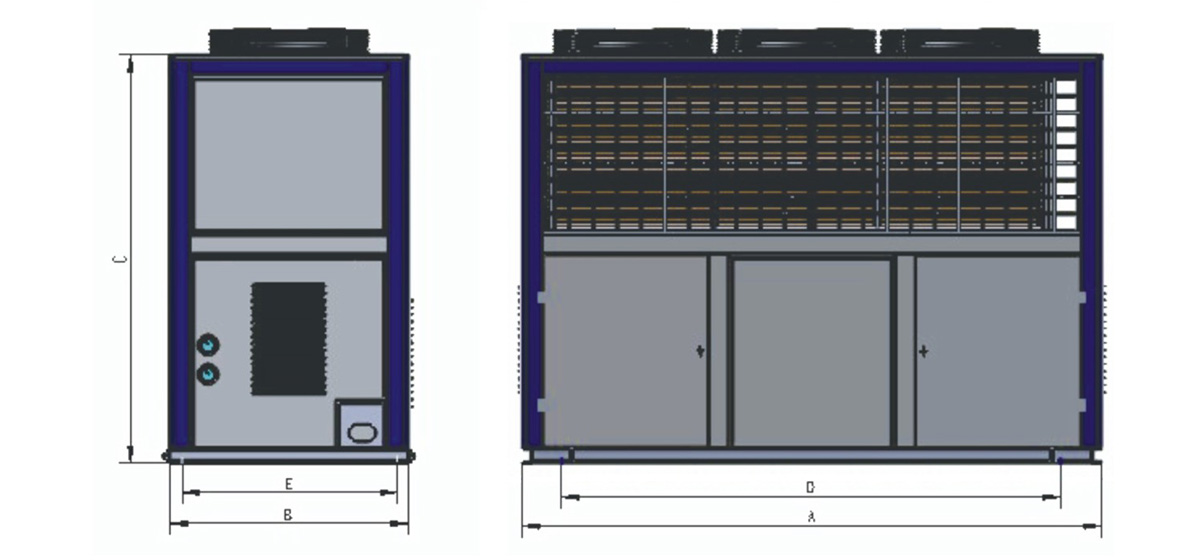

The following table compares the heat exchange capacity, heat interchanging area, length, width, height, external roter moter and pipe sizes for different models:
| Model | Heat Exchange Capacity | Heat Interchanging Area | Length | Width | Height | External Roter Moter Number | Pipe Diameter | Power | Air Quantity | Admitting Pipe | Liquid Outlet Pipe |
| FNVT-140 | 41.3 | 140 | 1644 | 1020 | 1865 | 2 | 32 | 2*670 | 2*8600 | 32 | 25 |
| FNVT-160 | 44.3 | 160 | 1644 | 1020 | 1865 | 2 | 32 | 2*670 | 2*8600 | 32 | 25 |
| FNVT-180 | 47 | 180 | 1844 | 1020 | 1865 | 2 | 32 | 2*670 | 2*8600 | 32 | 25 |
| FNVT-200 | 52.5 | 200 | 1644 | 1020 | 1865 | 2 | 32 | 2*670 | 2*8600 | 32 | 25 |
| FNVT-220 | 58.5 | 220 | 1744 | 1020 | 1865 | 2 | 32 | 2*670 | 2*8600 | 32 | 25 |
| FNVT-240 | 64.5 | 240 | 2446 | 1020 | 1865 | 3 | 32 | 3*670 | 3*8600 | 32 | 28 |
| FNVT-260 | 70.5 | 260 | 2600 | 1020 | 1865 | 3 | 32 | 3*670 | 3*8600 | 32 | 28 |
| FNVT-280 | 76 | 280 | 2300 | 1020 | 1865 | 3 | 35 | 3*670 | 3*8600 | 35 | 28 |
| FNVT-300 | 82.5 | 300 | 2300 | 1020 | 1865 | 3 | 35 | 3*670 | 3*6600 | 35 | 28 |
| FNVT-320 | 88.5 | 320 | 2446 | 1020 | 1865 | 3 | 42 | 3*825 | 3*8600 | 42 | 32 |
Packing and Shipping:
Product Packaging:
- The Air Cooler Condenser will be packaged in a wodden box.
- The product will be secured with foam and bubble wrap to prevent any damage during transit.
- The box will be labeled with the product name, model number, and handling instructions.
Shipping:
- The Air Cooler Condenser will be shipped via a reliable courier service.
- Shipping options include standard or expedited delivery.
- Customers will receive a tracking number via email to monitor their shipment.
