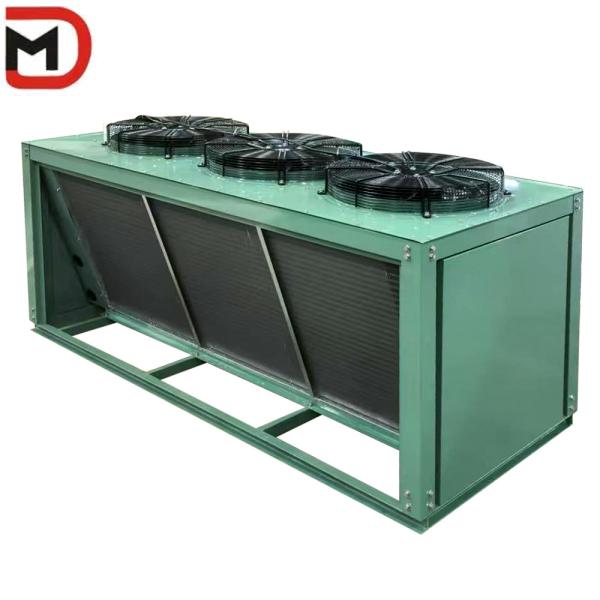

Cooled Unit Air Cooling Condenser in Refrigeration Equipment Cold Storage Cold Room

Brand Name : Damai brand

Model Number : FNV-10~310

Certification : ce ccc

Place of Origin : Made in China

MOQ : 1

Price : 2000

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 15

Packaging Details : WOODEN CASE

Weight : 80kg

Fins Per Row : 4000

Transport Package : Wooden Case

Motor Power : 1-80HP

Voltage : 220V/380V

Receiver Drier Included : Yes

Specification : CCC

Power : 3000kw

Pressure Drop : Depends On Fin And Tube Type

Dimensions : 30

Material : Copper and color steel

Application Fields : Freezer room

Power Source : Electricity

Trademark : Damai

Contact Now

Cooling system air cooled condenser for refrigeration equipment

Finned condenser is a high efficiency condensing radiator specially designed for refrigeration compressor condensing unit and parallel compressor unit. There are three structural forms: H-type, V-type and U-type. Different combinations of width and length and blowing direction, side air outlet and top air outlet modes ensure the best adaptability: different combinations of fan numbers ensure the adjustment of condensation pressure. External rotor motor can also be selected to reduce motor.

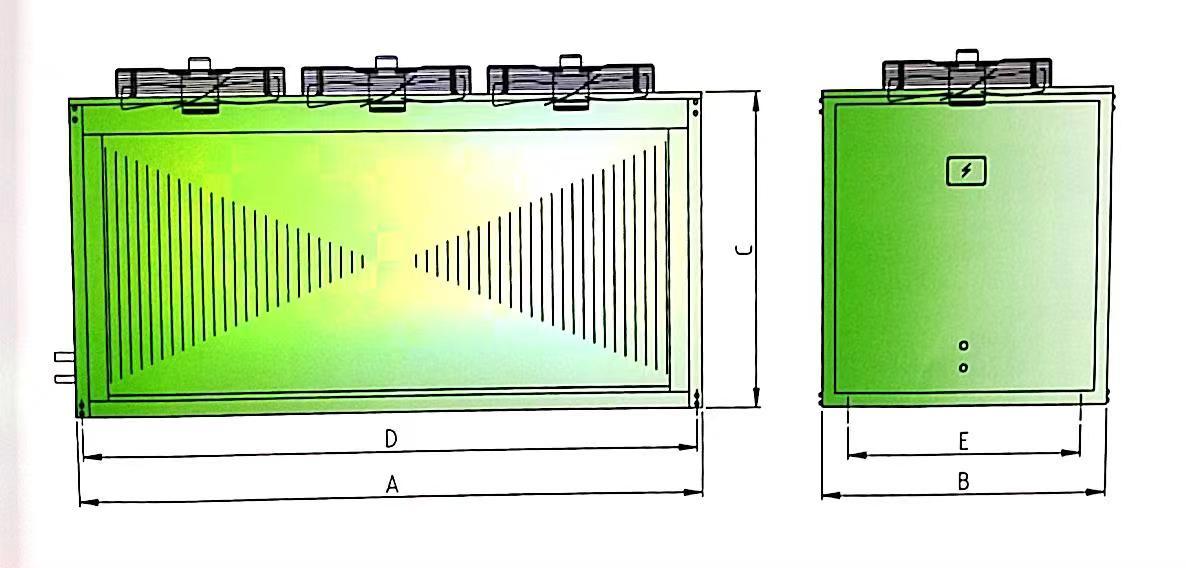

ModelABCDE
FNVT-06012256605951181450
FNVT-08013307256901286500
FNVT-10013507956401306600
FNVT-12015657956401521600
FNVT-14015508807301506650
FNVT-16017308807301686650
FNVT-18018009207751756700
FNVT-200177010068651726700
FNVT-22021409207752096700
FNVT-24023009207752256700
FNVT-26023309618202286700
FNVT-280236010068652316700
FNVT-300250010068652456700
FNVT-320252010489102476800

Cooled Unit Air Cooling Condenser in Refrigeration Equipment Cold Storage Cold Room


V-type

1. Reasonable structure, excellent compatibility, and can be used in conjunction with different types of compressors.

2. There are two types of fins: window fins and honeycomb fins, which can meet the needs of different kiln households.

3. Conduct an air tightness test at a pressure of 3.0 MPa to ensure high air tightness of the product upon leaving the factory.

4. The distance between components can be adjusted between 1.7 millimeters and 3.0 millimeters to meet the needs of customers under different environmental conditions

5. Different forms of condensing fans can be configured according to customer requirements.


Cooled Unit Air Cooling Condenser in Refrigeration Equipment Cold Storage Cold Room Cooled Unit Air Cooling Condenser in Refrigeration Equipment Cold Storage Cold Room

Company Profile

Why choose our company ?
1.Because our company has CAC official .
2.We have a good one-year after-sales service.
3.We have over 20 years of sales experience.
4.We have our own factory.
5.We will try our best to provide a professional response as soon as possible.

Product advantages
1.Quite operation.
2.Seamless connection.
3.Easy installation
4.Beautiful and elegant placement of circuit devices.
5.Using the best equipment.
6.Not easily damaged
