Product Description:

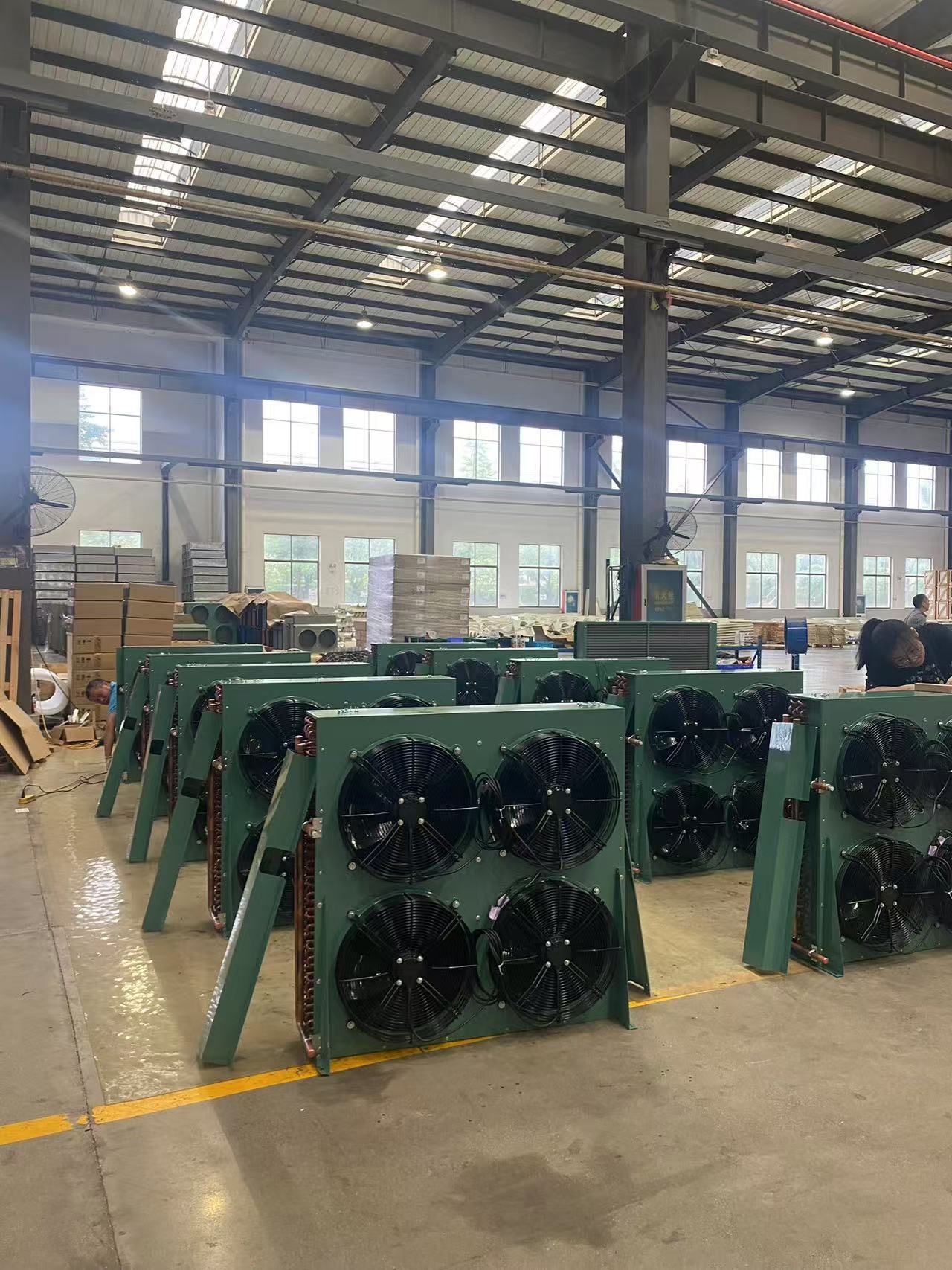

H-type air-cooled condenser is a type of equipment that is widely utilized in the realms of air conditioning, refrigeration, industrial cooling, and various other applications. This condenser primarily functions by extracting heat from the cooling medium using air cooling technology. Its distinctive feature lies in its design, which resembles the letter "H," hence the name.
The working principle of the H-type air-cooled condenser involves utilizing an electric fan to propel external air through the condenser tube. Through this mechanism, the heat of the heat medium within the condenser is carried away by the airflow, facilitating the condensation process.
Features:
The design of H-type air-cooled condensers is typically compact, which can save installation space and operate efficiently in a relatively small environment.
The H-type condenser utilizes an efficient heat exchange tube and fin design, enabling it to have a strong heat dissipation capacity. This design can rapidly reduce the working temperature and enhance the cooling efficiency of the system.
H-type air-cooled condensers find widespread applications in air conditioning, refrigeration equipment, refrigeration units, cooling systems, and other fields. They are particularly well-suited for use in locations where there is no water source or limited water availability.
Compared to water-cooled condensers, H-type air-cooled condensers do not require additional water pumps or pools. They are easier to install and maintain, making them suitable for a variety of application scenarios.
Technical Parameters:
| Serial number | Model | Heat exchange
(KW) | Fan electric machine |
| Number | Fan | Power | Air volume |
| 1 | FNH4-70 | 23.1 | 4 | φ400 | 4×180 | 4×3400 |
| 2 | FNH4-80 | 26.4 | 4 | φ400 | 4×180 | 4×3400 |
| 3 | FNH4-100 | 33.1 | 4 | φ400 | 4×180 | 4×3400 |
| 4 | FNH4-115 | 37.9 | 4 | φ400 | 4×180 | 4×3400 |
| 5 | FNH4-120 | 39.6 | 4 | φ400 | 4×180 | 4×3400 |
| 6 | FNH4-130 | 42.9 | 4 | φ450 | 4×250 | 4×4800 |
| 7 | FNH4-150 | 49.5 | 4 | φ450 | 4×250 | 4×4800 |
| 8 | FNH4-160 | 52.8 | 4 | φ450 | 4×250 | 4×4800 |
| 9 | FNH4-180 | 59.4 | 4 | φ450 | 4×250 | 4×4800 |
| 10 | FNH4-200 | 66 | 4 | φ500 | 4×414 | 4×6500 |
| 11 | FNH6-240 | 79.2 | 6 | φ450 | 6×250 | 6×4800 |
Applications:
Air Conditioning System: The air conditioning system functions as the condensing component of the air conditioner, working to disperse heat from the air conditioning refrigerant.
Industrial Cooling System: This encompasses cooling equipment, mechanical apparatus, and other areas that necessitate effective heat dissipation for optimal functionality.
Refrigeration Equipment: Examples include refrigerators, cold storage units, and similar devices that rely on air cooling systems to rapidly eliminate heat from the condenser.
Packing and Shipping:
Product Packaging for Air Cooler Condenser:
Our Air Cooler Condenser is carefully packaged in a sturdy cardboard box to ensure safe delivery. The condenser is protected with foam padding to prevent any damage during shipping.
Shipping Information:
Orders are typically processed within 1-2 business days. We offer standard and expedited shipping options. Standard shipping usually takes 3-5 business days, while expedited shipping takes 1-2 business days. Once your order is shipped, you will receive a tracking number to monitor the delivery status.
